Deep Dive into EchoNext-Mini

Medical AI
Author

Howard Baik

Published

July 20, 2026

Introduction

This post is a code-focused deep dive into an electrocardiographic deep learning model called EchoNext-Mini. EchoNext-Mini detects structural heart disease (SHD) from a 12-lead ECG by combining two inputs: the raw ECG waveforms and a handful of tabular features including age, sex, heart rate, PR interval, QRS duration, and corrected QT interval. It outputs 12 disease probabilities per ECG.

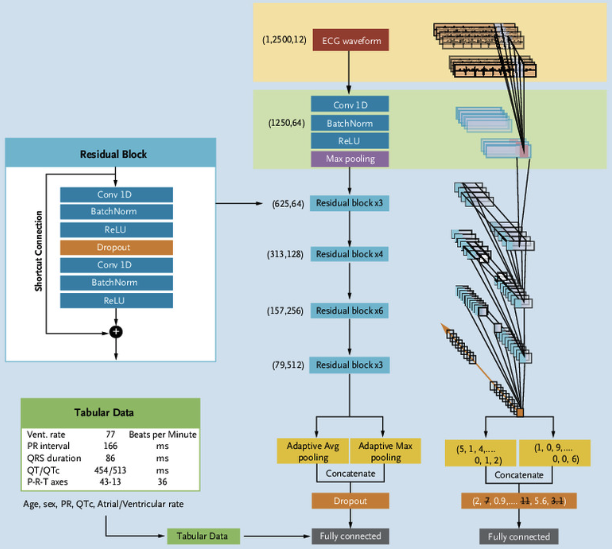

Figure 1: EchoNext-Mini model architecture

The model architecture is a 1D adaptation of ResNet-34 taking a 12-lead ECG as input with the final layer modified to accept tabular features alongside the learned ECG features. The final layer outputs 12 logits, with 1 detecting composite SHD and the other 11 detecting individual structural heart disease (SHD) subdiagnoses. The model was trained and evaluated on the EchoNext-Mini dataset and outputs a probability between 0 and 1.

In the rest of this post, we will go through the EchoNext-Mini source code, which is implemented in PyTorch, and explain how the model works. On a high-level, the code is organized into two main classes: BasicBlock1d and ResNet1dWithTabular.

The BasicBlock1d class

The BasicBlock1d class implements the pieces of a Residual Block (shown in Figure 1) that make up the EchoNext-Mini model architecture. It is a 1D adaptation of the original ResNet basic block, which was designed for 2D images. The BasicBlock1d class has two convolutional layers, each followed by batch normalization and ReLU activation. It also includes a “skip connection” that adds the input to the output of the second convolutional layer.

The __init__() method

The BasicBlock1d class is first initialized with nn.Conv1d, which is PyTorch’s 1D convolution layer - it slides learnable filters along a single dimension (time) instead of over a 2D image. It slides the filters with the parameters stride, padding, and kernel_size. Also, it is initialized with nn.BatchNorm1d for batch normalization, nn.ReLU for ReLU, and nn.Dropout for Dropout.

Show code
class BasicBlock1d(nn.Module):
    expansion = 1
    def __init__(
        self,
        inplanes: int,
        planes: int,
        stride: int = 1,
        downsample: Optional[float] = None,
        dropout: float = 0.5,
        kernel_size: int = 7,
        padding: int = 3,
        bias: bool = False,
        inplace: bool = True,
    ):
        super().__init__()
        self.conv1 = nn.Conv1d(
            inplanes, planes, kernel_size=kernel_size, stride=stride, padding=padding, bias=bias
        )
        self.bn1 = nn.BatchNorm1d(planes)
        self.relu = nn.ReLU(inplace=inplace)
        self.dropout = nn.Dropout(p=dropout)
        self.conv2 = nn.Conv1d(
            planes, planes, kernel_size=kernel_size, stride=1, padding=padding, bias=bias
        )
        self.bn2 = nn.BatchNorm1d(planes)
        self.downsample = downsample

The forward() method

The forward() method defines how data flows through the BasicBlock1d class. First, its saves the input as residual so it can be added back later (“skip connection”). Then, it goes through the first convolution stage: 1D convolution, batch norm, ReLU, and dropout. Then, the second convolution stage involves another 1D convolution and then batch normalization. The final residual addition only works if the out and x have identical shapes. In the case where the shapes don’t match, self.downsample projects the original input x to the new shape. Note that unlike the first convolution stage, there’s no ReLU activation right after the batch norm. The ReLU activation is deliberately deferred until after the residual addition, which is the classic ResNet ordering.

Show code
def forward(self, x: torch.Tensor) -> torch.Tensor:
    residual = x
    out = self.conv1(x)
    out = self.bn1(out)
    out = self.relu(out)
    out = self.dropout(out)
    out = self.conv2(out)
    out = self.bn2(out)
    if self.downsample is not None:
        residual = self.downsample(x)
    out += residual
    out = self.relu(out)
    return out

The ResNet1dWithTabular class

The ResNet1dWithTabular class is the top-level class representing the architecture of the EchoNext-Mini model. It is a ResNet-34 model adapted to 1D signals (12-lead ECG waveforms), and implements the entire model architecture shown in Figure 1. The model takes two inputs: a 12-lead ECG and a vector of tabular features (e.g., age, sex, heart rate, PR interval, QRS duration, corrected QT interval). The model outputs 12 logits, with 1 detecting composite SHD and the other 11 detecting individual structural heart disease (SHD) subdiagnoses.

The __init__() method

The ResNet1dWithTabular class contains the following constructor parameters:

  • len_tabular_feature_vector: Number of tabular features to be appended before the output layer.
  • filter_size=64: Number of channels after the stem convolution; each subsequent stage doubles it (in Figure 1, 64 → 128 → 256 → 512).
  • input_channels=12: The 12 ECG leads.
  • dropout_value=0.5: Dropout rate used both inside every residual block and before the final layer.
  • num_classes=1: A single logit, i.e., binary classification.
  • conv1_kernel_size=15, conv1_stride=2, padding=7: Stem convolution settings. The wide 15-sample kernel captures ECG morphology, a stride of 2 halves the time dimension, and padding of 7 preserves the “same” length.
  • bias=False: Convolutions skip their bias term because the batch norm right after each convolution has its own learnable shift, making a convolution bias redundant.

Then, it stores these parameters:

  • self.inplanes = filter_size: Current channel count
  • self.layers = [3, 4, 6, 3]: The number of residual blocks per stage. This 3-4-6-3 pattern comes from ResNet-34.
  • self.conv1:The stem convolution that maps the 12 ECG leads to 64 channels.
  • self.layer1, self.layer2, self.layer3, self.layer4: The four residual stages
  • self.adaptiveavgpool and self.adaptivemaxpool:Two adaptive pools that each collapse the entire time axis to a single value per channel. The average pool signifies the “overall level” of each feature and the max pool the “strongest occurrence” of each feature.
  • self.output: The final linear layer, where the input width is 8 * filter_size * expansion * 2 + len_tabular_feature_vector and the output width is num_classes (A single logit for binary classification of structural heart disease).

Breaking down the final linear layer (self.output)’s input width to nn.Linear:

  • 8 * filter_size: The number of channels coming out of layer4. The channel count doubles at each ResNet stage (filter_size → ×2 → ×4 → ×8), so with the default filter_size=64, the last stage outputs 512 channels.
  • * BasicBlock1d.expansion — expansion is 1 for basic blocks, so this is a no-op here. It’s kept for ResNet convention.
  • * 2 - The forward pass pools the feature map two ways, with adaptiveavgpool and adaptivemaxpool (each producing 512 values), and concatenates them (torch.cat((x1, x2), dim=1)). As a result, this gives 1024 (512 * 2) ECG-derived features.
  • + len_tabular_feature_vector — The tabular features (e.g., age, sex, ECG measurements) are concatenated onto that flattened vector.

The second argument to nn.Linear is the output width, num_classes (default 1, i.e., a single logit for binary classification of structural heart disease).

Show code
def __init__(
        self,
        len_tabular_feature_vector: int,
        filter_size: int = 64,
        input_channels: int = 12,
        dropout_value: float = 0.5,
        num_classes: int = 1,
        conv1_kernel_size: int = 15,
        conv1_stride: int = 2,
        padding: int = 7,
        bias: bool = False,
    ):
    super().__init__()
    self.inplanes = filter_size
    self.layers = [3, 4, 6, 3]
    self.conv1 = nn.Conv1d(
        input_channels,
        self.inplanes,
        kernel_size=conv1_kernel_size,
        stride=conv1_stride,
        padding=padding,
        bias=bias,
    )
    self.dropout_value = dropout_value
    self.bn1 = nn.BatchNorm1d(self.inplanes)
    self.relu = nn.ReLU(inplace=True)
    self.maxpool = nn.MaxPool1d(kernel_size=3, stride=2, padding=1)
    self.layer1 = self._make_layer(BasicBlock1d, filter_size, self.layers[0])
    self.layer2 = self._make_layer(BasicBlock1d, 2 * filter_size, self.layers[1], stride=2)
    self.layer3 = self._make_layer(BasicBlock1d, 4 * filter_size, self.layers[2], stride=2)
    self.layer4 = self._make_layer(BasicBlock1d, 8 * filter_size, self.layers[3], stride=2)
    self.adaptiveavgpool = nn.AdaptiveAvgPool1d(1)
    self.adaptivemaxpool = nn.AdaptiveMaxPool1d(1)
    self.output = nn.Linear(
        8 * filter_size * BasicBlock1d.expansion * 2 + len_tabular_feature_vector, num_classes
    )
    self.dropout = nn.Dropout(dropout_value)

The forward() method

The forward method takes as input a 12-lead ECG and a vector of tabular features (e.g., age, sex, ECG measurements). The ECG is first reshaped from [BATCH_SIZE, 1, FEATURE_SIZE, 12] to [BATCH_SIZE, 12, FEATURE_SIZE] for the 1D convolutions. Then, it goes through the stem convolution and the four residual layers that are built by BasicBlock1d. Each stage doubles the number of channels and halves the time dimension. After the last residual layer, the feature map is pooled in two ways (average and max), flattened, and concatenated with the tabular features. Finally, it goes through a linear layer to produce the num_classes logits.

Show code
def forward(self, x_and_tabular: Tuple[torch.Tensor, torch.Tensor]) -> torch.Tensor:
    x, tabular = x_and_tabular

    # Reshape x from [BATCH_SIZE, 1, FEATURE_SIZE, 12]
    # to [BATCH_SIZE, 12, FEATURE_SIZE] for the 1d convolutions
    x = torch.transpose(x, 2, 3)
    x = torch.squeeze(x, 1)

    # Stem
    x = self.conv1(x)
    x = self.bn1(x)
    x = self.relu(x)
    x = self.maxpool(x)

    # Residual layers
    x = self.layer1(x)
    x = self.layer2(x)
    x = self.layer3(x)
    x = self.layer4(x)

    # Pool (avg + max), flatten, and concat with tabular features
    x1 = self.adaptiveavgpool(x)
    x2 = self.adaptivemaxpool(x)
    x = torch.cat((x1, x2), dim=1)
    x = self.dropout(x)
    x = x.view(x.size(0), -1)
    x = torch.cat((x, tabular), dim=1)

    out = self.output(x)
    return torch.squeeze(out, 1)

Demo

To see the model in action, I grabbed demo data from PhysioNet. The validation set comes in two files: the ECG waveforms (EchoNext_val_waveforms.npy) and the accompanying tabular features such as age, sex, and ECG measurements (EchoNext_val_tabular_features.npy).

See below for the columns in the tabular features file:

  • sex: Binary indicator of patient sex. Encoded as 0 for female and 1 for male.
  • ventricular_rate: Preprocessed ventricular rate.
  • atrial_rate: Preprocessed atrial rate.
  • pr_interval: Preprocessed PR interval.
  • qrs_duration: Preprocessed QRS duration.
  • qt_corrected: Preprocessed QT interval.
  • age_at_ecg: Preprocessed patient age at time of ECG.

Preprocessing Notes: The continuous features were standardized. Missing values were imputed using the median, except for atrial_rate and pr_interval, which were imputed with 0. The categorical feature sex was binarized.

With the data in hand, I ran the inference script to compute, for every ECG in the validation set, the probability of each of the 12 structural heart diseases:

.venv/bin/python -m cradlenet.scripts.inference.ecg_tabular \
    --features_path physionet/EchoNext_val_waveforms.npy \
    --tabular_path physionet/EchoNext_val_tabular_features.npy \
    --legacy echonext \
    --batch_size 256 --num_workers 0 \
    --write_outputs --output_dir results/physionet_val/ \
    --num_classes 12 --len_tabular_feature_vector 7 --filter_size 16 \
    --binary \
    --progbar \
    --checkpoint models/echonext_multilabel_minimodel/weights.pt

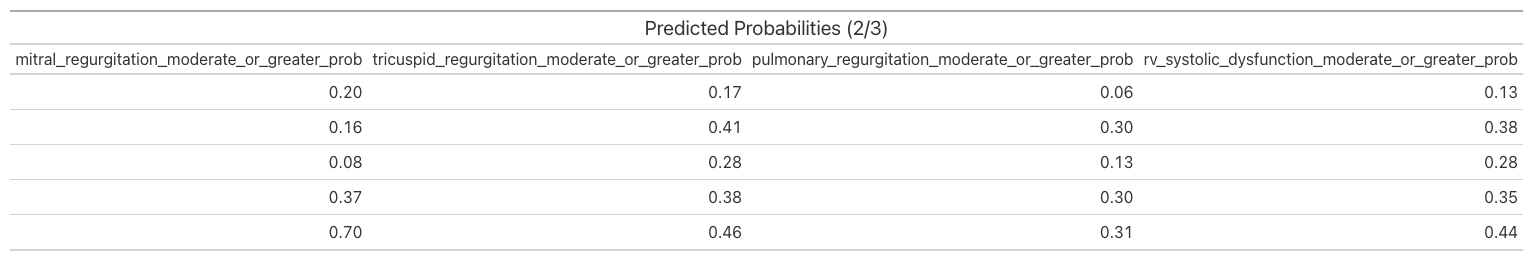

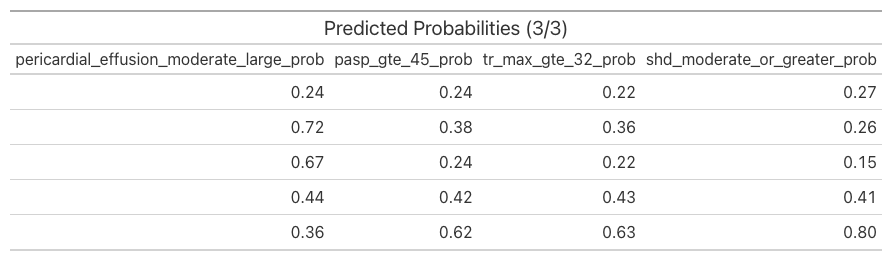

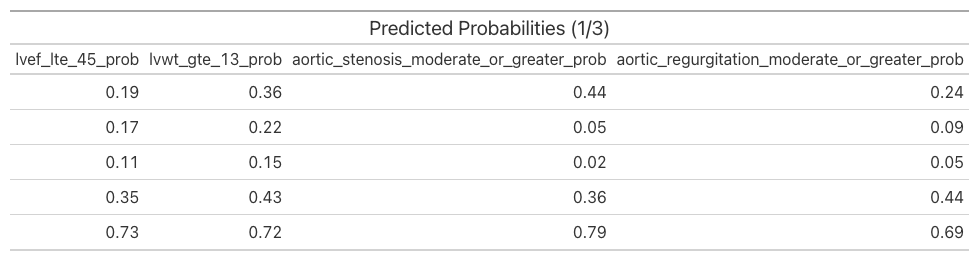

The output, probs.npy is a numpy array of shape [NUM_ECGS, 12] containing the predicted probabilities for each of the 12 structural heart diseases:

  • lvef_lte_45_prob: Indicates whether the left ventricular ejection fraction (LVEF) is less than or equal to 45%, suggesting moderately reduced systolic function.
  • lvwt_gte_13_prob: Indicates whether the maximum of the interventricular septum (IVS) or posterior wall (LVPW) thickness is greater than or equal to 1.3 cm, suggesting moderate left ventricular hypertrophy.
  • aortic_stenosis_moderate_or_greater_prob: Indicates moderate or severe aortic stenosis, based on categorical grading in the echocardiogram report.
  • aortic_regurgitation_moderate_or_greater_prob: Indicates moderate or severe aortic regurgitation.
  • mitral_regurgitation_moderate_or_greater_prob: Indicates moderate or severe mitral regurgitation.
  • tricuspid_regurgitation_moderate_or_greater_prob: Indicates moderate or severe tricuspid regurgitation.
  • pulmonary_regurgitation_moderate_or_greater_prob: Indicates moderate or severe pulmonary regurgitation.
  • rv_systolic_dysfunction_moderate_or_greater_prob: Indicates moderate or severe right ventricular systolic dysfunction.
  • pericardial_effusion_moderate_large_prob: Indicates presence of a moderate or large pericardial effusion.
  • pasp_gte_45_prob: Indicates whether pulmonary artery systolic pressure (PASP) is greater than or equal to 45 mmHg, suggesting pulmonary hypertension.
  • tr_max_gte_32_prob: Indicates whether tricuspid regurgitation maximum velocity is greater than or equal to 3.2 m/s (32 cm/s), a surrogate for elevated pulmonary pressures.
  • shd_moderate_or_greater_prob: Indicates the presence of moderate or greater structural heart disease, defined as meeting the threshold for one or more of the above conditions.
